David Clark Company
Airline/Airport

Pushback

Model H3530
click to enlarge

Model H3530

Series 3000 Wired Headset Designed for Tug Drivers in Pushback Operations
  • Flex boom allows for perfect microphone placement
  • DC-1A noise-cancelling amplified dynamic microphone
  • Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
  • 30-inch straight cord with locking connector mates with C35-XX Series Belt Station (below)
  • Corrosion-proof, chrome plated, headband/stirrup Assembly
  • Certified Noise Reduction Rating (NRR): 24db

NRR Sheet H3530
C35-XX
click to enlarge

C35-XX Belt Station

Interfaces the H3530 Headset to Aircraft
  • Momentary push-to-talk switch prevents background noise from interfering with communications
  • Available with either straight or coil cords in lengths from 8 to 30 feet
  • Threaded 1/4" jack on enclosure, with 1/4" TRS plug on end of cord assembly
  • C35-XX Series includes: C35-16 and C35-30 straight cord; C35-08 and C35-26 extended coil cord (number after dash indicates cord length in feet)
Model H9930
click to enlarge

Model H9930

Ideal for Tug Operators, Ramp Agents and Deicing Crews
Features
  • Rugged construction, all hardware marine-grade stainless steel
  • Dynamic earphones with stainless steel retainers
  • M-2 dynamic microphone, water-resistant protection and superlative noise cancelling
  • Hybrid wire-flex boom assembly
  • Dual volume controls on domes for preferred listening level
  • Undercut, Comfort-Gel Ear Seals
  • 4-chamber, air-flow pillow headpad
  • Certified NRR: 23 dB


Series 9900 De-icing System
Model H9935
click to enlarge

Model H9935

Superior Noise Attenuation for Wireless Ground Support
Features
  • Crisp, clear communication in demanding environments
  • All hardware marine-grade stainless steel for rust/corrosion resistance in harsh marine environments
  • M-2 dynamic microphone, water-resistant protection and superlative noise cancelling
  • Over-molded flex boom assembly, non-rotating, for precise microphone positioning and rugged reliability
  • Dual dynamic earphones (titanium nitride drivers) with stainless steel retainers
  • Dual volume controls, water-tight, for variable left/right gain setting capability
  • 6-foot extended coil cord with military-grade, 7-pin Belt Station connector
  • Undercut, comfort-gel ear seals provide unsurpassed comfort and enhanced noise-attenuation
  • 4-chamber, air-flow pillow head pad affords long-term comfort, eliminates "hot spots"
  • Passive noise attenuation rating: 26 dB
  • Rugged and dependable performance

Data Sheet, H9935

Series 9900 Pushback System

Series 9900 Pushback System

Spare Parts List H9935

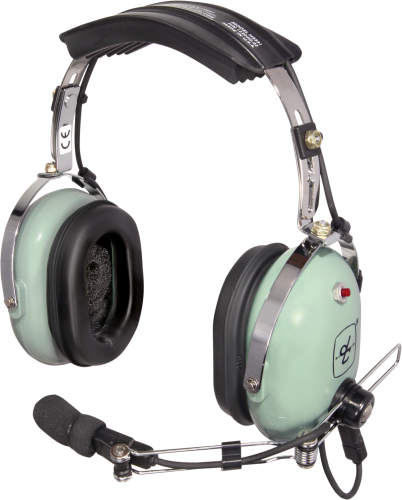

Model H3331
click to enlarge

Model H3331

Series 3000 Headset Typically Used for Pushback and Ramp Communications
  • DC-1A noise-cancelling amplified dynamic microphone
  • Microphone PTT switch on ear dome
  • Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
  • Hinged wire boom for easy microphone placement on right or left side
  • 15-foot straight cord with SC-267 plug mates with C31-XX extension cords
  • Corrosion-proof, chrome plated, headband/stirrup assembly
  • Certified Noise Reduction Rating (NRR): 24db

NRR Sheet H3331
Model H3335
click to enlarge

Model H3335

Series 3800 Headset Typically Used for Pushback and Ramp Communications
  • DC-1A noise-cancelling amplified dynamic microphone
  • Microphone on/off switch on ear dome allows hands-free communication
  • Soft foam head pad with ribbed design and foam ear seals for exceptional durability and comfort
  • Hinged wire boom for easy microphone placement on right or left side
  • 26-foot coil cord with SC-267 plug mates with C31-XX extension cords
  • Corrosion-proof, chrome plated, headband/stirrup assembly
  • Certified Noise Reduction Rating (NRR): 24db
