Series 9900 Pushback Systems (Wireless)
Series 9900 Wireless Systems for pushback operations are designed to provide ground crews with enhanced mobility and situational awareness without being tethered to the aircraft or pushback apparatus. Pushback operations are handled with greater efficiency and turnaround time at the gate is improved.
The Series 9900 System can be configured for a single user (tug operators working alone with no wing walkers) or as a 3-position system to facilitate communication between the tug operator and wing walkers. Rugged, reliable system components include pushback gateway and interface cord for connecting to the aircraft service panel, noise-attenuating headsets and belt stations shown below.
View Series 9900 Pushback System Configurations
View Series 9900 Pushback System Setup and Operation Video
The Series 9900 System can be configured for a single user (tug operators working alone with no wing walkers) or as a 3-position system to facilitate communication between the tug operator and wing walkers. Rugged, reliable system components include pushback gateway and interface cord for connecting to the aircraft service panel, noise-attenuating headsets and belt stations shown below.
View Series 9900 Pushback System Configurations
View Series 9900 Pushback System Setup and Operation Video
click to enlarge
Model H9910
Headset-Mic Shield
Dual-Ear, Over-The-Head style, provides maximum comfort and features mic-shield with snap/strap assembly for clear, hands-free communication in extreme high-noise environments.
click to enlarge
Model H9930
Clear Communication and Hearing Protection for Deicing/Anti-icing
Dual-Ear, Over-The-Head style, provides maximum comfort and features mic-shield with snap/strap assembly for clear, hands-free communication in extreme high-noise environments.
click to enlarge
Model H9935
Superior Noise Attenuation for Wireless Ground Support
click to enlarge

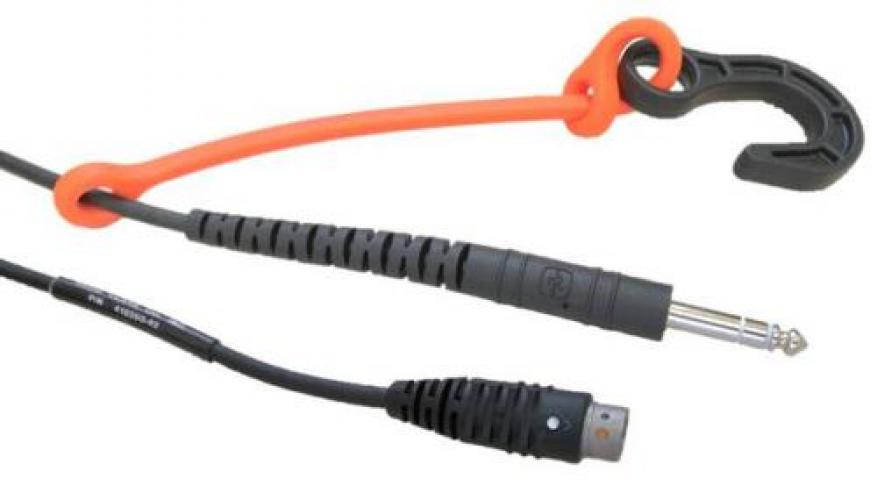

Model 41035G-02
Push-Back Interface Cord, 1/4
U9920-GPB Interface
click to enlarge
Model A99-14CRG
Charging Unit, 4-Bay
click to enlarge
Model 40688G-90
Battery
click to enlarge
U9920-GPB
Pushback Gateway Designed for Seamless Integration with Aircraft Interphone System
- Features
- Internal antenna provides range of at least 300 feet from Gateway
- Attach to aircraft via adjustable lanyard (3' to 6') and nylon hook
- "REMOVE BEFORE FLIGHT" banner included
- Military grade twist-lock connector mates to aircraft interphone cords.
- Accommodates up to 4 wireless users per Gateway
- U9910-BSW user (tug operator) presses PTT to talk to flight deck via Gateway
- U9913-BSW user (wing-walker) speaks on intercom only (does not transmit to flight deck)
- Multiple independent Gateways operate in same RF vicinity with no cross-talk; systems in adjacent gates experience no bleed-through
- Listen level control for regulating volume of flight deck intercom transmissions
- Close-proximity link via PTT button
- LED indicator for visual status of comm link and PTT status
- Rubberized outer skin, hi-visibility orange
- Li-Polymer battery (24 hours continual usage), easily removed for charging (3-4 hours) ,not included
- EU version available {U9920-GPB(EU)}
click to enlarge
U9910-BSW
Belt Station Transmits and Receives Audio, to and from the User's Headset
Features
- Hands-free, full duplex intercom via system Gateway
- Range of up to 300 feet (line-of-sight) to and from the Gateway
- Once linked to a Gateway, automatically reconnects on each power-up until purged from system ("strong link")
- Up to 4 Belt Stations can be connected to the system Gateway
- Marine-grade, water-tight enclosure and components
- Audible voice prompts for link/purge status, out-of-range, low battery
- Easily accessible battery compartment with removable Li-Polymer battery
- Removable Li-Polymer battery (24 hours continual usage) for charging (3-4 hours)
- VOX control with proprietary "helper" tone, assists in ideal VOX setting
- Large PTT for link, radio PTT, VOX override
- Power button with LED indicator for visual status of link, PTT and battery charge
- Military-grade, twist-lock headset connector
- Rubberized outer skin, black
- 360-degree rotational belt clip
- EU version available {U9910-BSW(EU)}
- Hands-free, full duplex intercom via system Gateway
click to enlarge
U9913-BSW
Belt Station Transmits and Receives Audio, to and from the User's Headset
Features
- Same as U9910-BSW, except no PTT transmit capability outside the intercom (no radio transmit)
- Hands-free, full duplex intercom via system Gateway
- Range of up to 300 feet (line-of-sight) to and from the Gateway
- Once linked to a Gateway, automatically reconnects on each power-up until purged from system ("strong link")
- Up to 4 Belt Stations can be connected to the system Gateway
- Marine-grade, water-tight enclosure and components
- Audible voice prompts for link/purge status, out-of-range, low battery
- Easily accessible battery compartment with removable Li-Polymer battery
- Removable Li-Polymer battery (24 hours continual usage) for charging (3-4 hours)
- VOX control with proprietary "helper" tone, assists in ideal VOX setting
- Large PTT for link and VOX override
- Power button with LED indicator for visual status of link, PTT and battery charge
- Military-grade, twist-lock headset connector
- Rubberized outer skin, hi-visibility yellow
- 360-degree rotational belt clip
- EU version available {U9913-BSW(EU)}
- Same as U9910-BSW, except no PTT transmit capability outside the intercom (no radio transmit)
