To order spare parts simply click on the part number highlighted in blue from the spare parts list below.

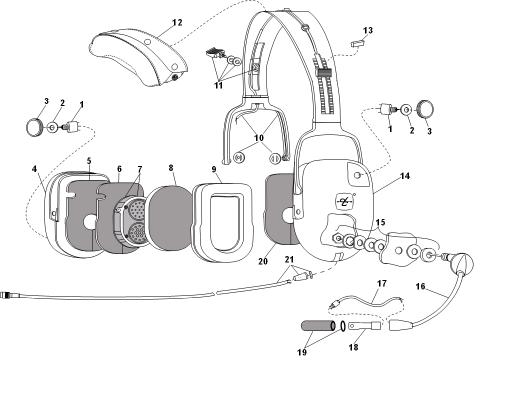

MODEL H20-10X

Download PDF version.
19520P-98 | 2016-04-01


1
Volume Control
2
Washer, Neoprene (10/pk)
3
Knob, Volume Control
4
Dome, Stamped RH
40500G-02
5
Filter, Dome, Yellow RH (1 each)
14096P-16
6
Filter, Dome, Charcoal (1 each)
14096P-15
7
Module with Bracket
18900G-88
8
Filter, Dome Charcoal (1 each)
14096P-14
9
Flo-Fit Gel Earseals (pr)
40243G-10
10
Headband Assy Kit
18900G-87
11
Headpad Latch Kit
18900G-72
12
Headpad, Stretching
13
Latch Stop Kit
14
Dome, Stamped LH
40499G-02
15
Boom Attachment Kit
12840G-13
16
Mic Boom Assembly
17
Microphone Plug Cord
18
M-7A Electret Mic
19
Mic Protector w/ O-Ring
20
Filter, Dome Yellow LH (1 each)
14096P-17
21
Comm Cord Kit
40599G-02
