David Clark Pilot Headset Fixed Wing
Our passive noise-attenuating fixed wing headsets provide extremely reliable performance and communication clarity. No matter what type of aircraft you fly, there's a David Clark passive or Electronic Noise Cancelling headset to meet your needs and enhance your flying experience. And all of our headsets are backed by a five-year warranty and the most extraordinary customer service in the industry… enjoy your flight.

Model H10-13.4
click to enlarge

Model H10-13.4

Classic Comfort and Reliable Performance
The H10-13.4 is one of the best selling headsets in the aviation industry. Proven, reliable performance and remarkable comfort have made the H10-13.4 the top choice for thousands of pilots.
  • Expanded, super-soft, double foam head pad [ORDER]
  • Larger, yet lighter, undercut, Comfort Gel, ear seals [ORDER]
  • Universal flex boom for perfect microphone placement
  • Exclusive M-7A, the most advanced noise-cancelling microphone available [ORDER]
  • Low-profile volume control knob with detent settings
  • Molded cord assembly made to exceptional pull and flex standards
  • 5-Year Warranty, Made in USA
  • FAA TSO Approved C-57b, C58a
  • Exceeds RTCA/DO-214 Standards
  • Weight (without cord assembly): 16.5 oz.
  • Certified Noise Reduction Rating - 23 dB

Available in five different configurations:

H10-13.4 (NSN 5965-01-446-1530)
The standard mono model with a five foot straight cord and dual plugs for fixed wing aircraft.
DC Part Number - 40411G-01
View parts list

View datasheet

H10-13 S (NSN 5965-01-447-6273)
A stereo version of the H10-13.4, with a 5 foot straight cord and dual plugs. (Inline Stereo/Mono switch).
DC Part Number - 40422G-01
View Parts List

View datasheet


H10-13 H (NSN 5965-01-446-1533)
The H10-13.4 for helicopter pilots. This model has a 5-foot extended coil cord and a single plug.
DC Part Number - 40411G-02
View parts list

View datasheet


H10-13 Y
A model for younger pilots. This small version of the H10-13.4 is upgradeable to the full sized version when needed.
DC Part Number - 40411G-04
View parts list

View datasheet

H10-13 N (NSN 5935-99-946-6652)
Terminated with NATO-Type plug.
DC Part Number - 40411G-12
View parts list

View datasheet

Noise Attenuation Data
NRR
23 dB
Frequency (Hz) 125 250 500 1000 2000 3000 4000 6000 8000
Attenuation (dB) 16.6 20.7 27.4 33.0 30.5 36.2 38.1 36.6 36.6
Standard Deviation 2.6 2.5 2.5 2.6 3.1 3.5 3.7 3.7 3.6

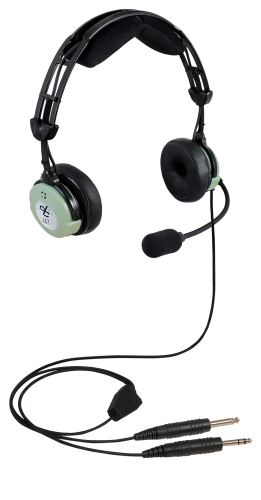

Model DC PRO
click to enlarge

Model DC PRO

Supra Aural, Passive Communication Headset
The DC PRO passive headset incorporates outstanding comfort features in a supra-aural design. This lightweight, yet extremely durable communication headset is designed for low-noise jet aircraft.

Note: As with any passive headset featuring a supra-aural design, the DC PRO is not recommended for fixed wing, piston engine aircraft. The DC PRO was designed for use in the commercial/transport jet aircraft market.
  • Extremely light, yet rugged magnesium alloy headband and suspension
  • Dual volume controls provide independent listening levels in each ear
  • Adjustable suspension assembly for personalized fit
  • Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool and eliminates 'hot spots' [ORDER]
  • Ultra-soft, Dura-Stitched, leatherette ear seals with supra-aural (rest on ear) design provide personalized fit and eliminate heat buildup for greater comfort [ORDER]
  • Swivel hinge stirrups for secure, comfortable fit
  • M-55 electret microphone for enhanced noise cancelling
  • Full flex boom for precise microphone placement
  • 5-ft. straight cord with dual plugs
  • Collapsible design for compact storage in David Clark branded headset bag (included)
  • Five-year warranty, Made in USA
  • Weight (without cord assembly) 8oz.
  • FAA TSO-C139a Approved
  • DC Part Number, 43101G-01

View Parts List


Data Sheet DC PRO

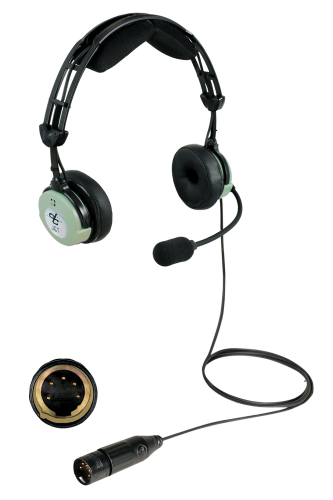

Model DC PRO-A
click to enlarge

Model DC PRO-A

Supra Aural, Passive Communication Headset, 5-Pin (Airbus) Connector
The DC PRO-A has all the same comfort and performance features as the DC PRO passive communication headset, but comes with a 5-pin plug for connecting to Airbus aircraft.
  • 5-ft. straight cord with 5-pin (Airbus) plug
  • Extremely light, yet rugged magnesium alloy headband and suspension
  • Dual volume controls provide independent listening levels in each ear
  • Adjustable suspension assembly for personalized fit
  • Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool and eliminates 'hot spots' [ORDER]
  • Ultra-soft, Dura-Stitched, leatherette ear seals with supra-aural (rest on ear) design
    provide personalized fit and eliminate heat buildup for greater comfort [ORDER]
  • Swivel hinge stirrups for secure, comfortable fit
  • M-55 electret microphone for enhanced noise cancelling
  • Full flex boom for precise microphone placement
  • Collapsible design for compact storage in David Clark branded headset bag (included)
  • Five-year warranty, Made in USA
  • Weight (without cord assembly) 8oz.
  • FAA TSO-C139a Approved
  • DC Part Number, 43101G-02


Data Sheet DC PRO-A
Model DC PRO-S
click to enlarge

Model DC PRO-S

Supra Aural, Single Ear, Passive Communication Headset
Lightweight, ultra comfortable, single ear style permits hearing of ambient sound
  • Volume control located on ear dome
  • Full flex boom for precise microphone placement
  • M-55 electret microphone with enhanced noise cancelling
  • Rugged, yet lightweight magnesium alloy headband and suspension is adjustable for personalized fit
  • Low profile, Outlast® fabric head pad with vented design absorbs excess heat to keep you cool and eliminates 'hot spots' [ORDER]
  • Dura-stitched, leatherette ear seal and soft foam temple pad provide maximum comfort
  • DC Part Number, 43101G-06

View parts list

Model H10-30
click to enlarge

Model H10-30

Outstanding Value in a Proven Design
The H10-30 is an excellent value for both seasoned aviators and pilots who are just earning their wings. Provides all the comfort and performance features that a David Clark headset is known for, at a very competitive price.
  • Super-soft head pad [ORDER]
  • Larger, yet lighter, undercut, Comfort Gel, ear seals [ORDER]
  • Wire boom for easy mic placement
  • Our "Best Value" Headset
  • M-7/DC electret noise-cancelling microphone [ORDER]
  • Molded cord assembly made to exceptional pull and flex standards
  • 5-Year Warranty. Made in USA
  • FAA TSO Approved C57 Cat. B and C58aExceeds RTCA/DO-214 Standards
  • Weight (without cord assembly): 20 oz.
  • Certified Noise Reduction Rating - 24 dB


Available in two different configurations:

H10-30 (NSN 5965-01-396-6216)
Standard model with a straight cord and dual plugs for fixed-wing use.
DC Part Number - 12508G-17
View parts list

View datasheet

H10-36 (NSN 5965-01-446-1506)
Helicopter version of the H10-30. Comes equipped with a 5-foot extended coil cord and a single plug.
DC Part Number - 12508G-36
View parts list

View datasheet

Noise Attenuation Data
NRR
24 dB
Frequency (Hz) 125 250 500 1000 2000 3000 4000 6000 8000
Attenuation (dB) 14.3 21.5 27.1 31.8 36.0 39.6 41.8 39.7 37.0
Standard Deviation 3.3 2.4 1.5 1.6 1.3 2.1 2.1 2.0 1.3
Model H10-20
click to enlarge

Model H10-20

Maximum Performance at a Mid-Range Price
If you're looking for maximum and reliability at a very reasonable price, the H10-20 is your performance choice. Engineered and designed with comfort features that pilots have asked for, including a super-soft foam head pad, adjustable headband and Comfort Gel ear seals.
  • Super-soft head pad [ORDER]
  • Larger, yet lighter, undercut, Comfort Gel, ear seals [ORDER]
  • Flex boom assembly can be adjusted for perfect microphone placement
  • M-7A, advanced noise-cancelling microphone [ORDER]
  • Low-profile volume control knob with detent settings
  • 5-Year Warranty, Made in USA
  • FAA TSO Approved C-139
  • Exceeds RTCA/DO-214 Standards
  • Weight (without cord assembly): 19 oz.
  • Certified Noise Reduction Rating - 24dB

Available in three different configurations:

H10-20 (NSN 5965-01-446-1475)
Standard fixed wing model with a straight cord and dual plugs.
DC Part Number - 40074G-01
View parts list

View datasheet

H10-21 (NSN 5965-01-446-1479)
Comes with a 5-foot extended coil cord and dual plugs.
DC Part Number - 40074G-03
View parts list

View datasheet

H10-26 (NSN 5965-01-446-1483)
Helicopter version, with a 5-foot extended coil cord and a single plug.
DC Part Number - 40074G-02
View parts list

View datasheet

Noise Attenuation Data
NRR
24 dB
Frequency (Hz) 125 250 500 1000 2000 3000 4000 6000 8000
Attenuation (dB) 14.3 21.5 27.1 31.8 36.0 39.6 41.8 39.7 37.0
Standard Deviation 3.3 2.4 1.5 1.6 1.3 2.1 2.1 2.0 1.3
Model H20-10
click to enlarge

Model H20-10

Comfort Without Compromise
The H20-10 is made from advanced composite material that is lightweight, yet extremely durable. Unique custom comfort features include contoured, gel-filled ear seals and patented headband suspension system.
  • Made from Advanced Composite Materials
  • Exclusive Custom Comfort System:
    • Extremely lightweight
    • Patented head pad suspension provides pillow-like comfort
    • Special headband design cradles your head just enough to block the noise
    • Contoured gel ear seals mold softly to your head [ORDER]
    • No exposed overhead cord
  • Exclusive M7-A, the most advanced noise-cancelling microphone available [ORDER]
  • Molded cords made to exceptional pull and flex standards.
  • 5-Year Warranty, Made in USA
  • FAA TSO Approved C-139
  • Exceeds RTCA/DO-214 Standards
  • Weight (without cord assembly): 19 oz.
  • Certified Noise Reduction Rating - 22dB

Available in two different configurations:

H20-10 (NSN 5965-01-447-6438)
DC Part Number - 40495G-01
View parts list

View datasheet

H20-10S (NSN 5965-01-447-6470)
Stereo version with inline stereo/mono switch.
DC Part Number - 40495G-09
View parts list

Noise Attenuation Data
NRR
22 dB
Frequency (Hz) 125 250 500 1000 2000 3000 4000 6000 8000
Attenuation (dB) 14.7 19.9 24.7 29.6 32.0 35.2 37.9 36.3 36.1
Standard Deviation 2.1 1.9 1.9 2.5 3.2 3.3 3.4 4.1 4.1
Model H10-60
click to enlarge

Model H10-60

Built-In Versatility
The H10-60 is a premium quality headset designed for pilots who fly frequently and spend long hours in the cockpit. The versatile dome jack accepts three different cord assemblies to accommodate a variety of aircraft requiring different headset plugs for unmatched versatility to meet your flying requirements.
  • Super-soft head pad [ORDER]
  • Larger, yet lighter, undercut, Comfort Gel, ear seals [ORDER]
  • Headset pressure adjustment
  • Headband size adjustment
  • M-7A, advanced noise-cancelling microphone [ORDER]
  • Dual volume control lets you adjust the level for each ear
  • Boom guide lock
  • Exclusive, patented flex/wire boom for easy, precise microphone placement
  • Dome jack lets you select from three different cord assemblies
  • 5-Year Warranty, Made in USA
  • FAA TSO Approved C-57b, C58a
  • Exceeds RTCA/DO-214 Standards
  • Weight (without cord assembly): 22 oz.
  • Certified Noise Reduction Rating - 23 dB

Available in three different configurations:

H10-60 (NSN 5965-01-446-1516)
The standard model with a 5-foot extended straight cord and dual plugs.
DC Part Number - 40128G-01
View parts list

View datasheet


H10-60 C (NSN 5965-01-446-1519)
Comes with a 5-foot extended coil cord and dual plugs.
DC Part Number - 40128G-02
View parts list

View datasheet

H10-60 H (NSN 5965-01-446-1525)
Helicopter version. Comes equipped with a 5-foot extended coil cord and a single plug.
DC Part Number - 40128G-03
View parts list

View datasheet

Noise Attenuation Data
NRR
23 dB
Frequency (Hz) 125 250 500 1000 2000 3000 4000 6000 8000
Attenuation (dB) 18.2 22.1 28.6 32.2 31.1 34.5 37.3 38.4 38.0
Standard Deviation 4.0 3.0 3.3 2.9 2.8 3.0 4.0 4.2 4.5
