Adapters

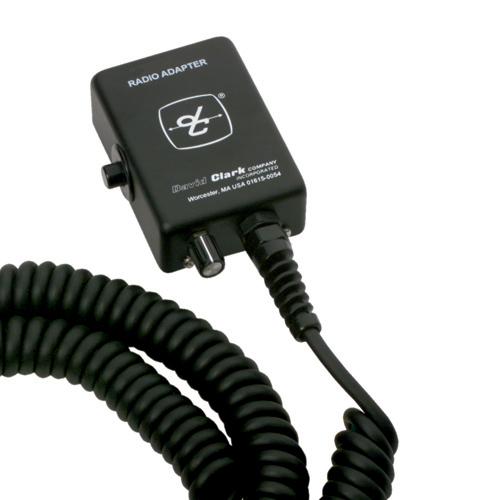

Designed for Series 3000 Headsets

• Custom electronics and radio-specific connector

• Features headset jack, positive action PTT switch and PTT/VOX toggle switch

• Belt clip

• Rugged RFI-shielded coil cord (15 ft. extended)

• Needs to be wired into the accessories connector
• For radios that do not provide mic bias
• Features headset jack, positive action PTT switch
• Belt clip
• Rugged RFI-shielded coil cord

Additional necessary items for mounting:

18352G-23 Connector Kit for bulkhead mounting

09461P-07HA000 8 Conductor Shielded Cable (per foot) or equal

13238P-07 Protective cap (Optional)

• Replaces C3019; fits existing C3019 installations.
• Needs to be wired in to accessories connector

• For radios that provide mic bias

• Features headset jack, positive action PTT switch

• Belt clip

• Rugged RFI-shielded coil cord


Additional necessary items for mounting:

18352G-16 Connector Kit for bulkhead mounting

09271P-34HA000 6 Conductor Shielded Cable (per foot) or equal

13238P-01 Protective cap (Optional)

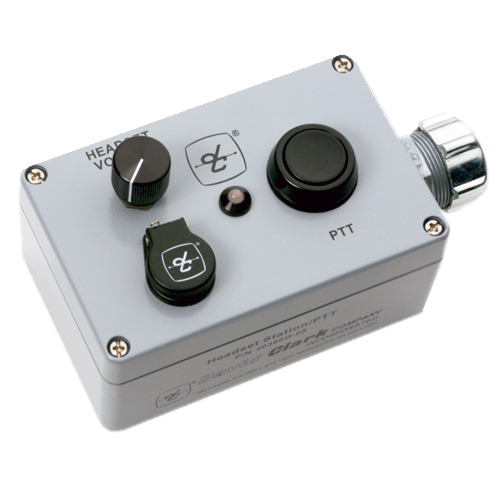

Model 40380G-05 Headset Station provides interface between any David Clark Series 3000 Noise-Attenuating Headset and Mobile Radios. Includes a PTT switch, a radio transmit LED indicator, a headset jack, listen-level volume control and strain relief fitting. An optional footswitch (P/N 40071G-03) is available for hands-free operation.

Additional necessary items for mounting:

• 09815P-20HA000 2 Conductor Shielded Cable (per foot)-Power
• 09271P-34HA000 6 Conductor Shielded Cable (per foot)-Radio

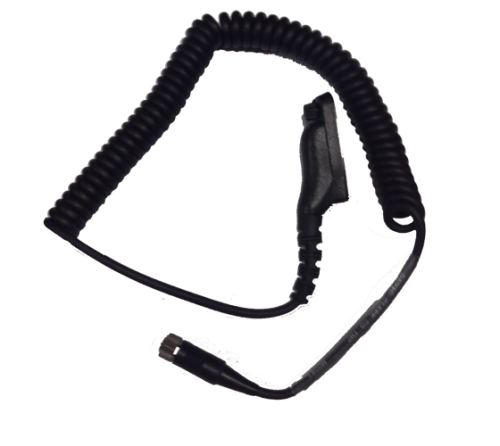

• Rugged RFI-shielded coil cord
• Radio specific connector on one end of cord
• Other end of cord connects to 6200 series headset

Please note XTS and MTS radios do not contain a VOX module. Selecting the VOX setting on the VOX/PTT switch on H6200-M headsets will continuously key the radio.

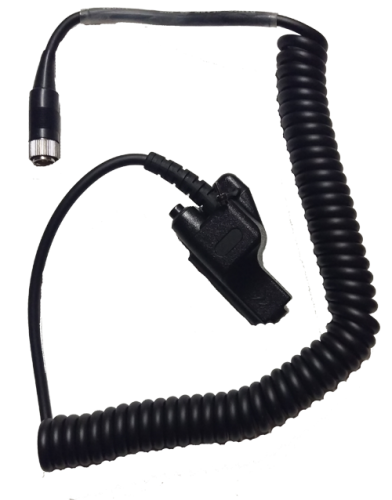

• Rugged RFI-shielded coil cord
• Radio specific connector on one end of cord
• Other end of cord connects to 6200 series headset

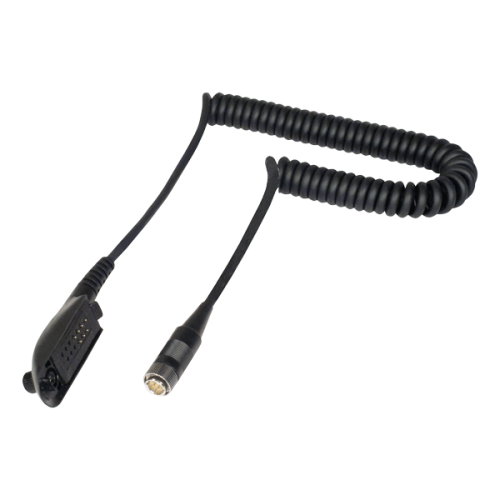

• Rugged RFI-shielded coil cord
• Radio specific connector on one end of cord
• Other end of cord connects to 6200 series headset

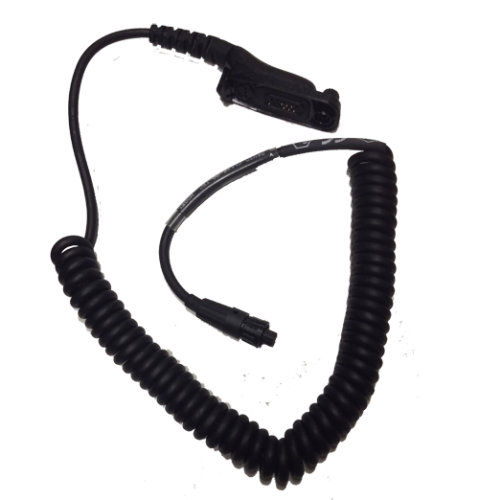

• Rugged RFI-shielded coil cord
• Radio specific connector on one end of cord
• Other end of cord connects to 6200 series headset

Please note that the VOX/PTT switch on the H6200-M headset must be in PTT mode when using a Mototrbo radio in it's VOX mode. The radio will do the rest. If the PTT button is pressed it will put the radio back in PTT mode. to return to VOX mode simply change the channel and then back again and it will reactivate VOX mode.

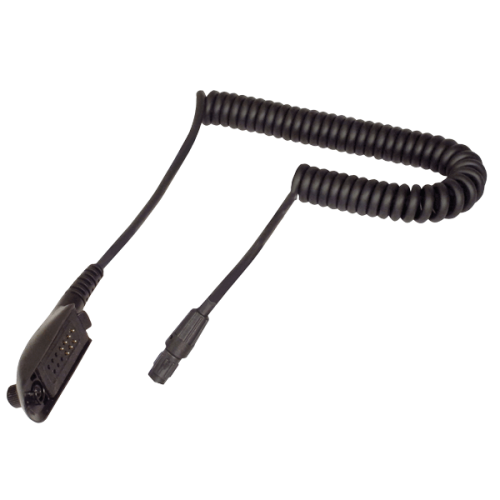

• Rugged RFI-shielded coil cord
• Radio specific connector on one end of cord
• Other end of cord connects to 6700 series headset

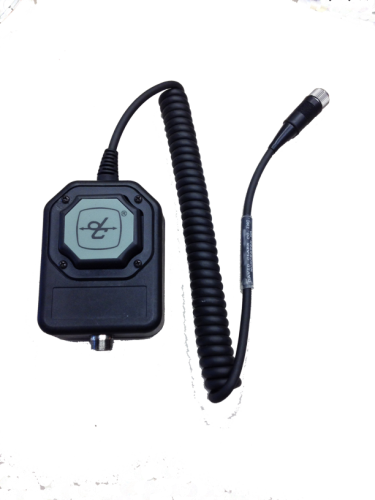

U6710 (P/N 40918G-60) inline body switch can be added between this cord and the 6700 series headset.

Please note that the VOX/PTT switch on the H6700-M headset must be in PTT mode when using a Mototrbo radio in it's VOX mode. The radio will do the rest. If the PTT button is pressed it will put the radio back in PTT mode. to return to VOX mode simply change the channel and then back again and it will reactivate VOX mode.

• Rugged RFI-shielded coil cord
• Radio specific connector on one end of cord
• Other end of cord connects to 6700 series headset

U6710 (P/N 40918G-60) inline body switch can be added between this cord and the 6700 series headset.

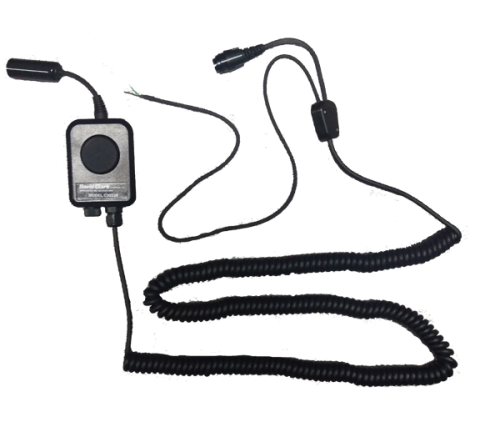

• Needs to be wired in to radio's audio accessories connector

• For radios that do not provide mic bias

• Headset jack
• Positive action PTT switch

• Belt clip

• Volume control for radio receive
• Rugged RFI-shielded coil cord (15' extended)
