Cables

C91-20PW

C91-20PW

Power Cable, 20 ft. Length
  • Connects to U9100 Master Station (11 to 30 VDC)

Data Sheet, C9100

Installation Sheet, C91-20PW
C91-20RD

C91-20RD

Radio Interface Cable, 20 ft. Length
  • Connects to 6-pin connector on U9102 or U9104 module
  • Interfaces to analog radio signals (mic, speaker, PTT, ground)
  • Also used as primary cable within a remote PTT assembly (PTT options separate; not included)

Data Sheet, C9100

Installation Sheet, C91-20RD

Product Bulletin - Remote PTT Options
C91-20AX

C91-20AX

Auxiliary Cable, 20 ft. Length
  • Connects to 4-pin connector on U9102 module: 3.5mm plug on opposite end
  • Interfaces to analog input/output signals from ancillary devices (additional 3.5mm jack to dual RCA connector cord included)



Data Sheet, C9100

Installation Sheet, C91-20AX
C9101

C9101

Network Cable, Turnkey (2 meter)
  • Connects endpoints (Headset Station or Wireless Gateway) with U9101 Switch Card at the Master Station
  • 2 meters long (approx. 6.5 feet) heavy-duty Cat5e Cable with over-molded IP-68 rated Ethernet plugs on both ends
  • Simplifies system installation, eliminates marine network cable fabrication

Data Sheet, C9100

Installation Sheet, C910x
C9102

C9102

Network Cable, Turnkey (3 meter)
  • Connects endpoints (Headset Station or Wireless Gateway) with U9101 Switch Card at the Master Station
  • 3 meters long (approx. 9.5 feet) heavy-duty Cat5e Cable with over-molded IP-68 rated Ethernet plugs on both ends
  • Simplifies system installation, eliminates marine network cable fabrication

Data Sheet, C9100

Installation Sheet, C910x
C9103

C9103

Network Cable, Turnkey (5 meter)
  • Connects endpoints (Headset Station or Wireless Gateway) with U9101 Switch Card at the Master Station
  • 5 meters long (approx. 16 feet) heavy-duty Cat5e Cable with over-molded IP-68 rated Ethernet plugs on both ends
  • Simplifies system installation, eliminates marine network cable fabrication

Data Sheet, C9100

Installation Sheet, C910x
C91-20RD1

C91-20RD1

Radio Interface Cable, 20 ft. Length, turnkey to Motorola APX series land mobile radios
  • Connects to 6-pin connector on U9102 or U9104 module
  • Direct interface to Motorola APX and XTL series land mobile radios

Installation Sheet, C91-20RD1
C91-20RD2

C91-20RD2

Radio Interface Cable, 20 ft. Length, turnkey to Standard Horizon GX6000 (rear mic)
  • Connects to 6-pin connector on U9102 or U9104 module
  • Direct interface to Standard Horizon GX6000 VHF mobile radio (rear hand mic port)
09271P-58

09271P-58

Network Cable, CAT5e
  • Heavy-duty cable used to connect endpoints to U9100 Master Station
  • Compatible with IP-68 rated RJ-45 Field Termination Kit (13199P-66)
  • Sold per foot

Data Sheet, C9100

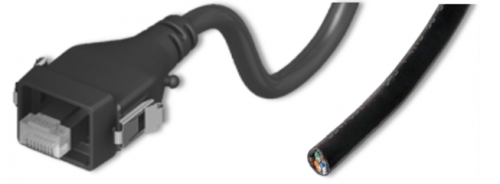

13199P-66

13199P-66

Field Termination Kit
  • Waterproof Ethernet plug (IP-68 rated)
  • Dual-latch housing, connects to IP-68 jacks on Switch Card Modules and system endpoints
  • Used with heavy-duty Cat5E cable (p/n 09271P-58, sold per foot)

Data Sheet, C9100
